GENERAL INFORMATION
Product Code
NPM20/BK/PIR/840
Product Range
PUMA
Product Category
Floodlighting
Fixing Method
Surface
IP Rating
54
IK Rating
Warranty
5 Years
DIMENSIONS/WEIGHT

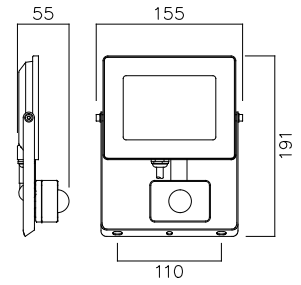

Dimensions
W: 155 - H: 191 - DEPTH: 55 - DIAMETER:
Cut-out Size (mm)
Product Weight (kg)
1.31
Construction
Body Material
Die Cast Aluminium
Body Colour
Black
Optical Material
Optical Finish
Termination
1m H05RN-F Flex
Driver - Integral or Remote
Integral
PACKAGING
Carton Dimensions (mm)
Quantity per Outer Carton
Total Weight incl. Carton (Kg)
LUMINAIRE PERFORMANCE
Energy Rating
Luminaire Lumens (lm)
1984
Power Consumption (W)
20.3
Efficacy (l.lm/c.W)
98
Operating Temp. (Min/Max)
-20°C to 25°C
LIGHT SOURCE
Type
LED
Correlated Colour Temp.
4000
Colour Rendering Index (CRI)
>80
Lumen Depreciation
L70 50000
SDCM
<5
ELECTRICAL INPUT
Voltage (V)
220-240V AC
Operating Frequency (Hz)
50/60Hz
Inrush
7A
Drivers per MCB *
Class
Class 1
Power Factor (PF)
>0.95
Cable Entry
Prewired
ELECTRICAL OUTPUT
Forward Current (mA)
Forward Voltage (Vf)
EMERGENCY DATA
Mode of Operation
Battery Duration
Battery Type
Battery Specification
Ballast Lumen Factor (BLF)
DIMMING
DALI
Switch Dim
Corridor Function
Other
SENSORS
Microwave
PIR
Yes
PEC
STANDARDS/APPROVALS
CE / Cert of Conformity
Yes / Yes
Accreditations
BARCODE / E No. / S No.
EAN Number
5056673201263
E Number
S Number
