GENERAL INFORMATION
Product Code
NBI28/840/TPA
Product Range
BISMARCK
Product Category
LED Panels
Fixing Method
Recessed
IP Rating
54 front / 20 back
IK Rating
Warranty
7 Years Unlimited

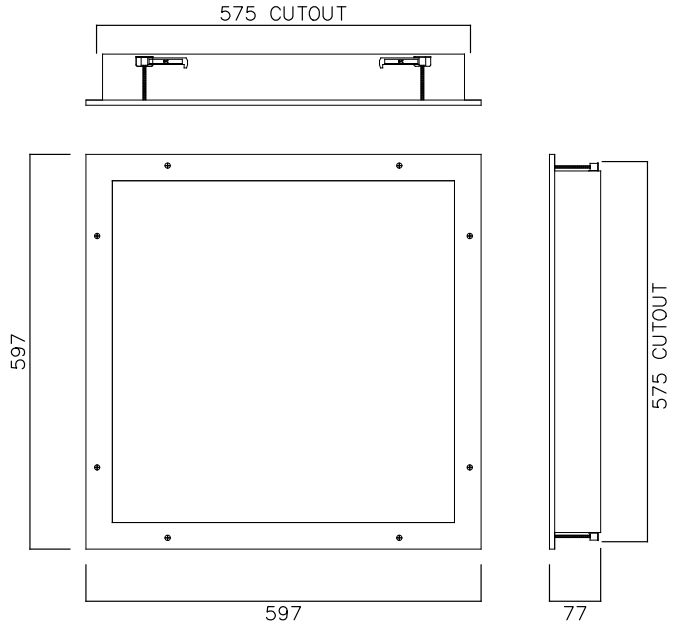

DIMENSIONS/WEIGHT
Dimensions
W: 597 - H: - DEPTH: 77 - DIAMETER:
Cut-out Size (mm)
575
Product Weight (kg)
4.5
Construction
Body Material
Steel
Body Colour
White
Optical Material
Optical Finish
Termination
3x2x2.5mm sq. Push In Terminal
Driver - Integral or Remote
Integral
PACKAGING
Carton Dimensions (mm)
Quantity per Outer Carton
Total Weight incl. Carton (Kg)

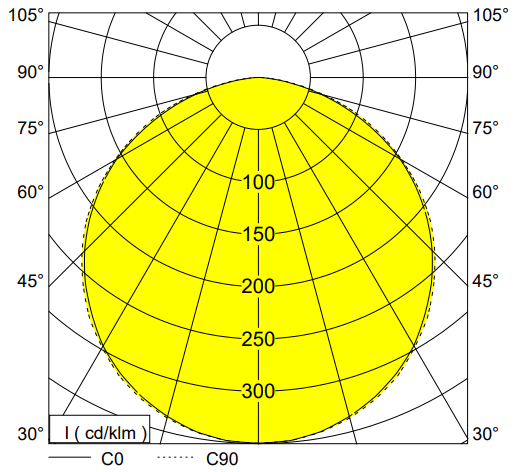

LUMINAIRE PERFORMANCE
Energy Rating
E
Luminaire Lumens (lm)
3435
Power Consumption (W)
27.9
Efficacy (l.lm/c.W)
123
Operating Temp. (Min/Max)
-20°C to 25°C
LIGHT SOURCE
Type
LED
Correlated Colour Temp.
4000
Colour Rendering Index (CRI)
>80
Lumen Depreciation
L80 100000
SDCM
<3
ELECTRICAL INPUT
Voltage (V)
220-240V AC
Operating Frequency (Hz)
50/60Hz
Inrush
<16A @ 100us
Drivers per MCB *
B10=16 B16=25
Class
Class 1
Power Factor (PF)
>0.95
Cable Entry
Prewired
ELECTRICAL OUTPUT
Forward Current (mA)
770
Forward Voltage (Vf)
32.4
EMERGENCY DATA
Mode of Operation
Battery Duration
Battery Type
Battery Specification
Ballast Lumen Factor (BLF)
DIMMING
DALI
Switch Dim
Corridor Function
Other
SENSORS
Microwave
PIR
PEC
STANDARDS/APPROVALS
CE / Cert of Conformity
Yes / Yes
Accreditations
BARCODE / E No. / S No.
EAN Number
5056673203922
E Number
S Number
